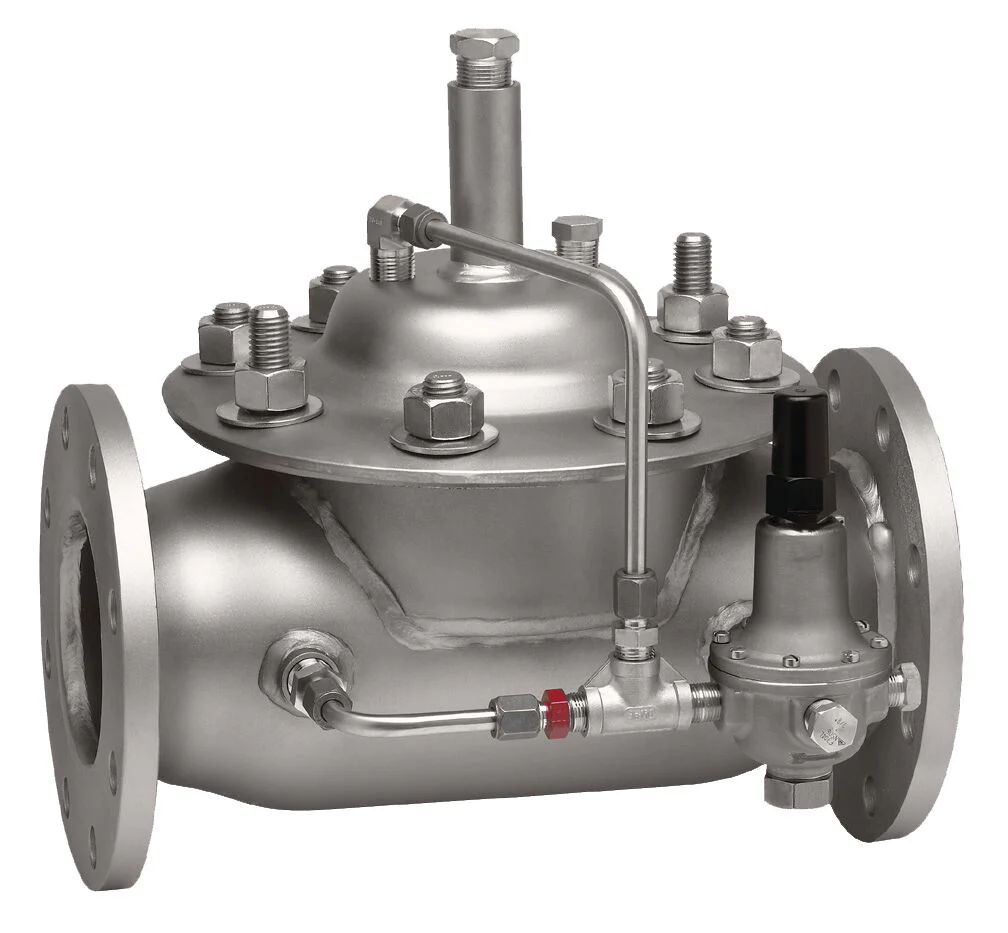

The 3 inch S115 150 ACV pressure reducing control valve is designed to automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure regardless of varying flow rates. The pressure reducing control pilot is normally open, held open by an adjustable spring setting to maintain a constant outlet pressure to the main valve.

Features

• Class 150 flanged
• 250 psig rated
• Maintains a constant pressure regardless of flow rate
• 20-200 psig

Specifications
Adjustable Reduced Pressure Range	20-200 PSIG
Adjustable Reduced Pressure Range-BAR	NA
ArmorTek Technology	No
Body Material	Stainless Steel
Brand	Watts
Coating	Does Not Apply To Product
EAN	098268189094
Inlet Connection Size	3 IN
Inlet Connection Type	Flanged Joint
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	212
Maximum Working Pressure-PSI	250
Outlet Connection Size	3 IN
Outlet Connection Type	Flanged Joint
Part Number	3100-30
Series	S115
Valve Style	Does Not Apply To Product
Warranty Name	Standard Watts Warranty

UPC - 098268189094
