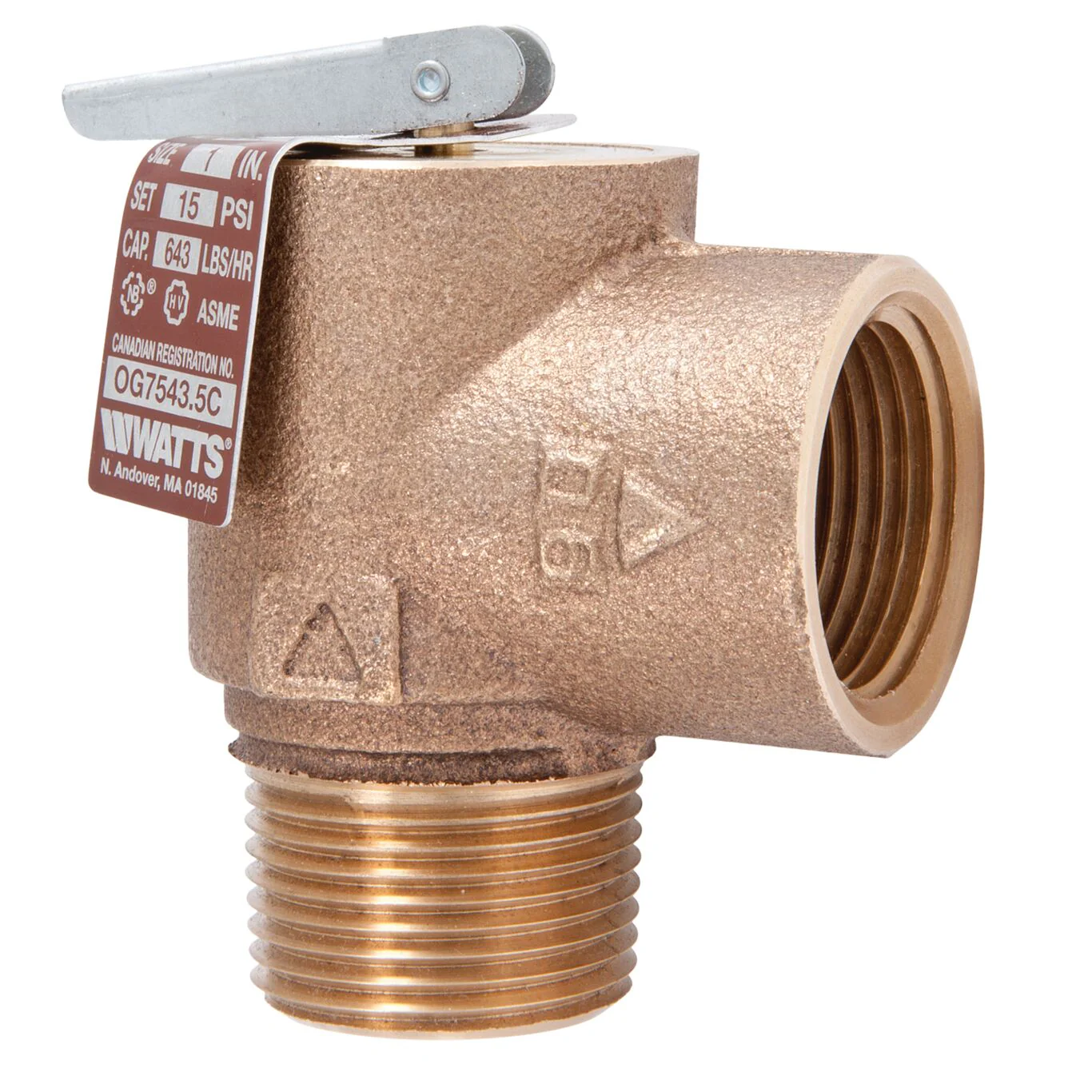

This 3/4 by 3/4 inch dependable, low cost, high capacity safety relief valve is designed for pressure cookers and steam cleaning equipment requirements used in low pressure applications. It features a brass body, stainless steel spring, top guided stem, NPT threaded male inlet by threaded female outlet (drain) connection and a non-stick PTFE disc-to-metal seat to assure positive shutoff. The factory pressure setting for saturated steam service is set at 8 psi.

Features

• Pressure for saturated steam service set at 8 psi
• Brass body
• Male NPT screwed inlet and female NPT screwed outlet
• Top guided stem and non-stick PTFE disc to metal seat assures positive shutoff
• Used for pressure cookers and steam cleaning equipment in low pressure applications
• High capacity
• Seat located above drain
• Stainless steel spring

Specifications
Body Material	Brass
Brand	Watts
EAN	098268635157
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	Not In Scope
Maximum Temperature-Fahrenheit	250
Maximum Working Pressure-PSI	15
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0346038
Pressure Relief Setting-PSI	15
Pressure Steam Discharge Capacity	450 pounds per hour at 15 PSI
Protection Type	Pressure
Series	415

UPC - 098268635157
