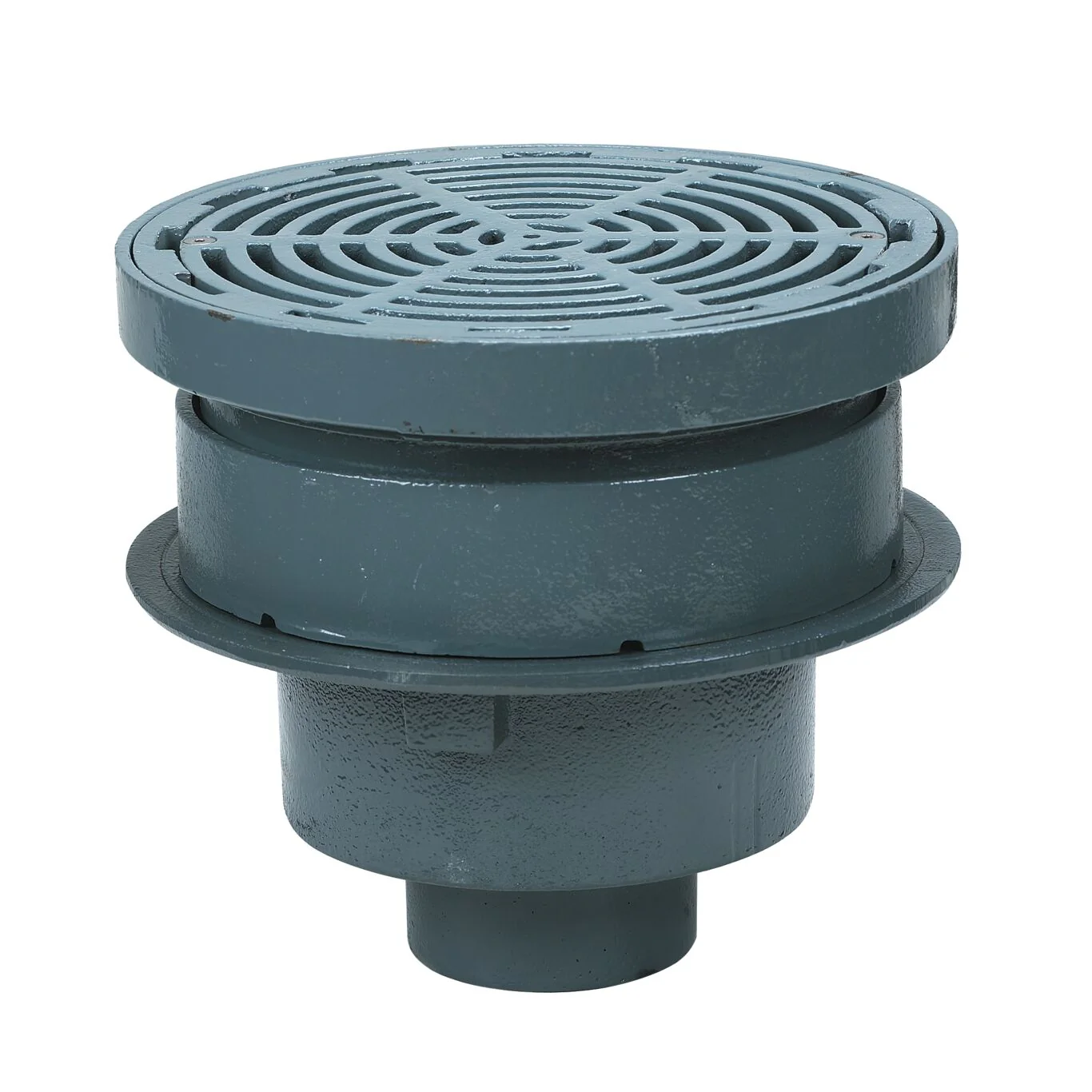

The Watts FD-340-SET is an epoxy-coated cast-iron area drain that supports heavy commercial traffic. It features an anchor flange, a membrane clamp with weepholes to capture perimeter seepage, a 12½″ diameter adjustable top for finished-floor alignment, and a loose-set heel-proof ductile iron grate supported by a sediment-bucket design. Standard connection is no-hub.

Key Features

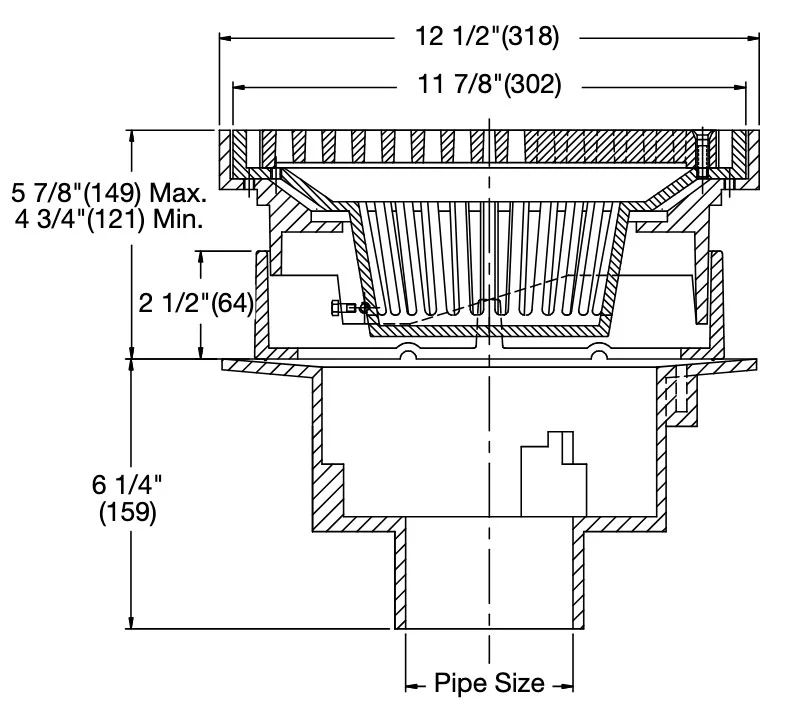

• 12½″ round adjustable top enabling field height adjustment to match finished floor level

• Epoxy-coated cast-iron body with anchor flange and dual weepholes for enhanced seepage control

• Loose-set heel-proof ductile iron grate supported by a removable bucket for maintenance ease

• Standard no-hub outlet connection with multiple outlet size options for flexibility

• Rated for heavy-duty commercial load environments

Downloads:

• Specification Sheet
