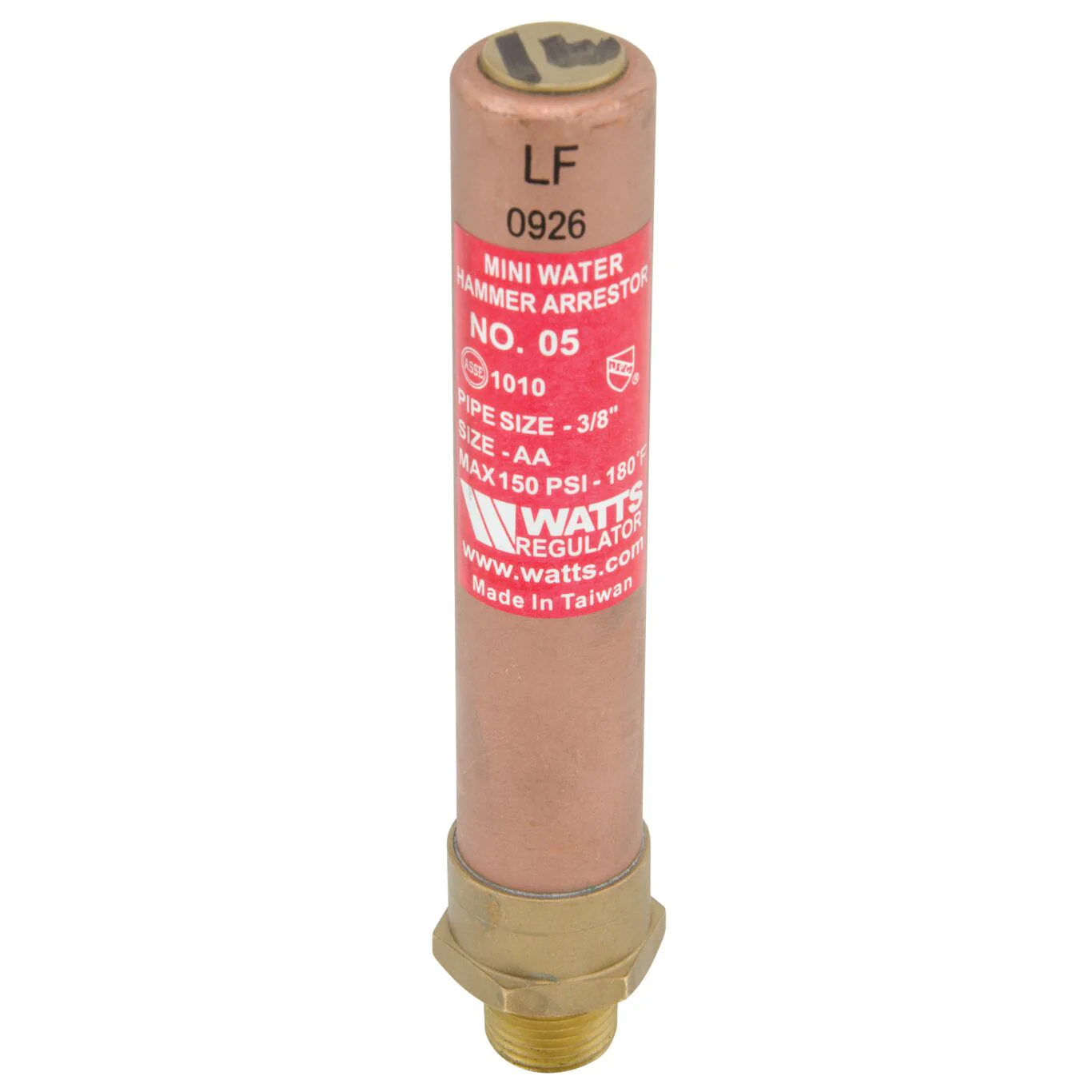

This 3/8 inch lead free mini water hammer arrestor provides economical and effective single fixture protection used in residential water system applications such as dishwasher, washing machine, and fast closing positive shutoff valve applications. It is designed to provide automatic, repetitive control of water hammer in residential and light industrial applications and prevent water hammer conditions that are damaging to pipes and appliances. This is a factory air charged, permanently sealed unit with NPT threaded end connection and a straight body design. It should be installed as close to the shock source as possible with one unit each for the hot and cold water lines. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C) and the operating pressure is up to 150 psi (10.3 bar).

Features

• Ideal for dishwashers, washing machines and quick-closing faucets
• Can be installed vertically, horizontally or any angle in concealed locations without access panels
• Factory air charged and is not rechargeable
• ASSE approved and IAPMO listed

Specifications
Air Precharge	60 PSI
Air Valve	No
Body Material	Copper
Brand	Watts
Buy American Act Compliant	NO
Connection Size	3/8 IN
Connection Size-Metric	10 MM
Connection Type	Female Threaded
EAN	098268430110
Factory Set Pressure-PSI	60
Lead Free	YES
Maximum Operating Temperature-Celsius	82.00
Maximum Operating Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	10.00
Maximum Working Pressure-PSI	150
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Part Number	0009850
Product Overall Height	5.25 IN
Product Overall Width	1.25 IN
Series	LF05
Temperature Range	33 to 180 degree F
Thread Type	NPT

• Specification Sheet - LF05

UPC - 098268430110
