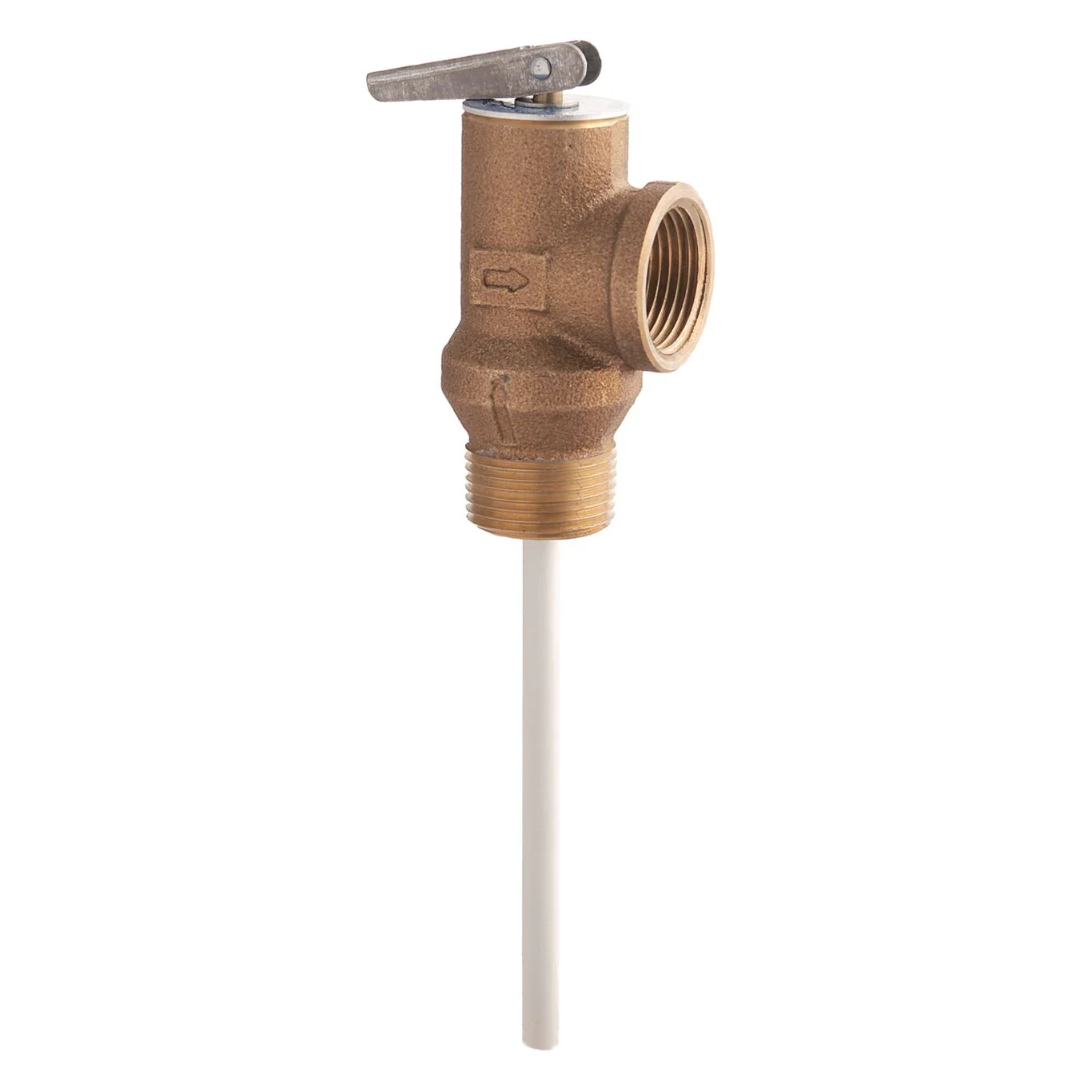

This 1/2 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 15,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper silicon alloy body construction, NPT male inlet and NPT female outlet connections, a 2 inch thermostat with special thermo-bonded coating and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.6 bar).

Features

• Lead free copper silicon alloy body construction
• Unique thermostat with special thermo-bonded
• Stainless steel spring
• Protects against excessive temperature and pressure during emergency conditions

Specifications
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
EAN	098268582918
Inlet Connection Size	1/2 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0121321
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	LF1L
Shank Length	7/8 IN
Temperature Relief-Fahrenheit	210

• Specification Sheet - LF1L, LF1XL, LF10L, LF100XL

UPC - 098268582918
