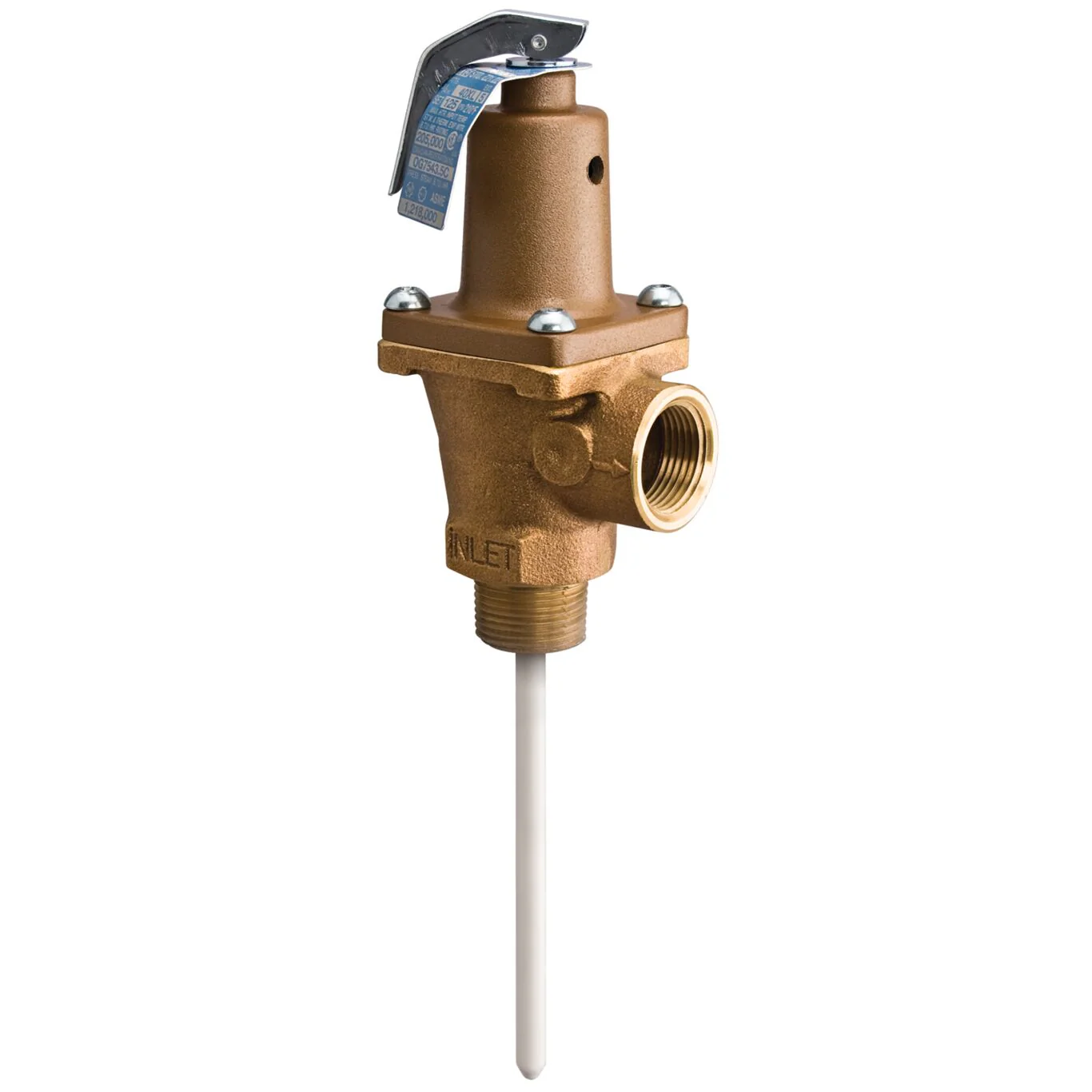

This 3/4 inch lead free automatic reseating temperature and pressure relief valve with an 8 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features lead free construction with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is 100 psi.

Features

• Lead free construction
• Tamper resistant bonnet screws
• 8 Inch thermostat length
• Non-mechanical seat to disc alignment

Specifications
Body Material	Lead Free Brass
Brand	Watts
EAN	098268584509
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0121420
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	100
Protection Type	Temperature And Pressure
Series	LF40L
Temperature Relief-Fahrenheit	210

• Specification Sheet - Flood Sensor for Relief Valve Discharge Line
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line (French)
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line (Spanish)
• Specification Sheet - LF40, LF140, LFN240, LF340
• Specification Sheet - LF40, LF140, LFN240, LF340 (French)
• Specification Sheet - LF40, LF140, LFN240, LF340 (Spanish)
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit (French)
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit (Spanish)

UPC - 098268584509
