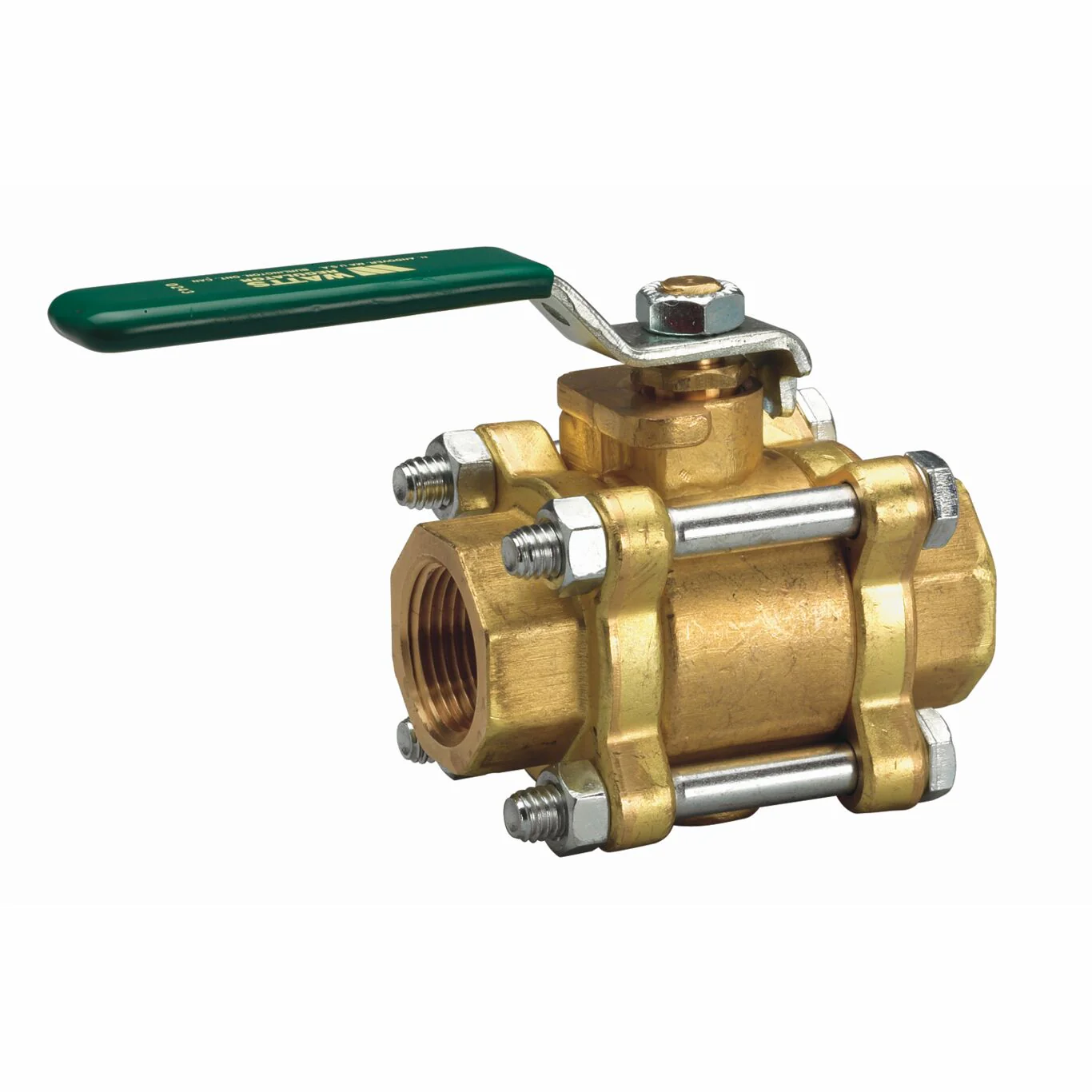

This 3/8 inch 3-piece full port lead free ball valve is used in commercial and industrial applications. It features an in-line maintenance design that offers serviceability of all operating parts without disturbing the piping system. The full port orifice ensures maximum flow capacity. This valve consists of a lead free body with threaded NPT end connections, reinforced PTFE Durafill^® seat, chrome plated lead free brass ball, and blow-out proof stem to provide safety and high operating pressure/temperature limits.

Features

• Lead free construction
• Blowout proof pressure retaining stem
• Threaded NPT end connections
• Full port

Specifications
Actuation	Yes
Assembled Dry	No
Balance Stop Plate	No
Ball Material	316 Stainless Steel
Body Finish	Brass
Body Material	Brass
Brand	Watts
Control Type	Tee Handle
CV Rating	6
EAN	098268689136
Inlet Connection Size	3/8 IN
Inlet Connection Size-Metric	10 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	450
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Operating Torque	60.0
Outlet Connection Size	3/8 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0123221
Port Type	Full
Seat Material	Carbon/Glass Reinforced PTFE Durafill
Series	LFB6800
Stem Packing Material	Glass Reinforced PTFE
Stem Shaft Material	316 Stainless Steel
Stem Type	Blowout Proof
Thrust Washer Material	Glass Reinforced PTFE
Valve Style	3-piece
WOG Rating	600 PSI

• Specification Sheet - LFB6800

UPC - 098268689136
