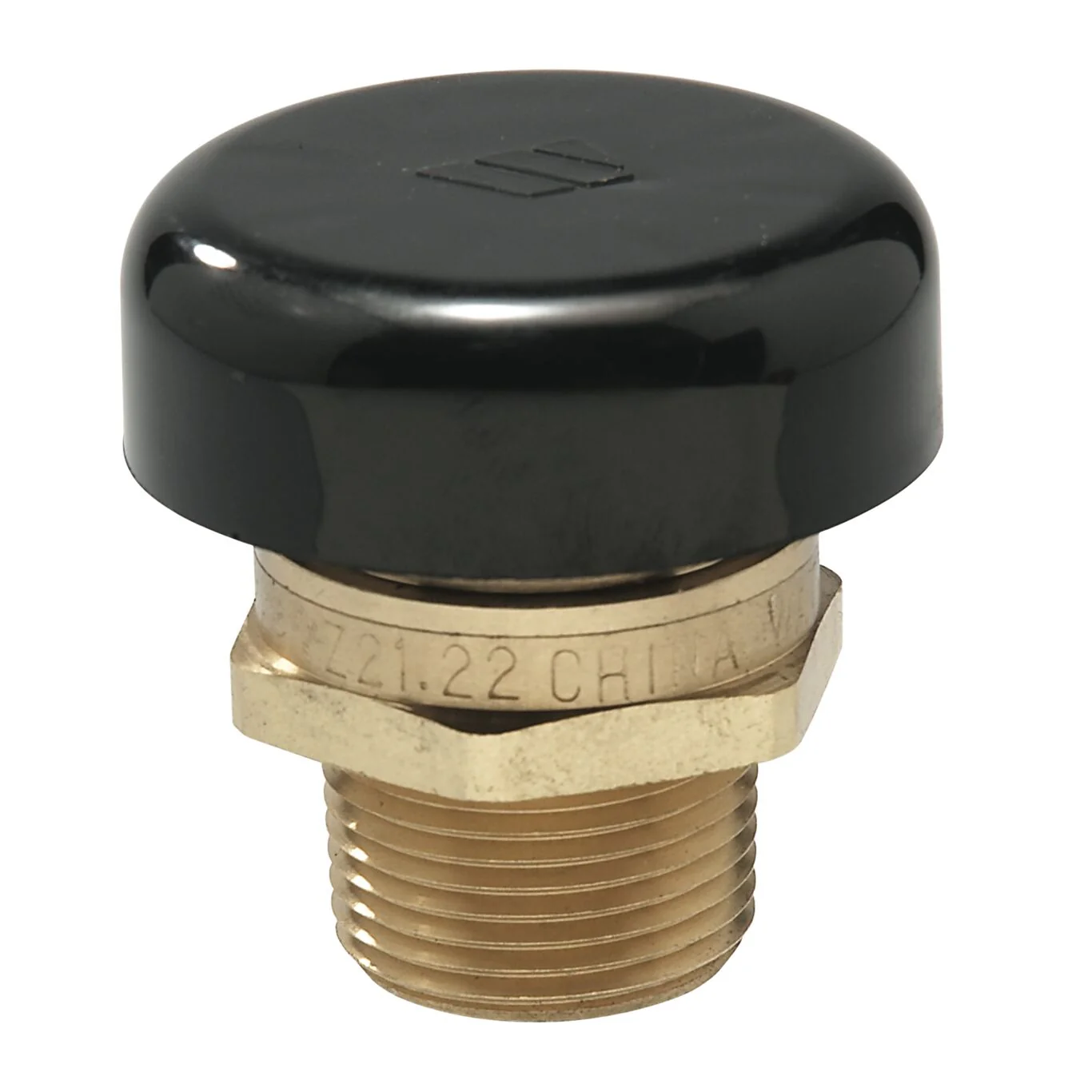

This 1/2 inch lead free vacuum relief valve is suitable for low pressure steam and water service, and is ideal for use in domestic water heaters and supply tanks. This valve automatically allows air to enter into the piping system to prevent vacuum conditions that could siphon water from the system and damage water equipment. It consists of a lead free brass body construction with NPT male inlet connection, and a protective cap. Maximum working pressure is 200 psi.

Features

• Lead free construction
• Low profile
• Maximum temperature 250 degrees
• Maximum steam pressure 15 psi

Specifications
Body Material	Lead Free Brass
Brand	Watts
Buy American Act Compliant	NO
Inlet Connection Size	1/2 IN
Inlet Connection Type	Male Threaded
Lead Free	YES
Maximum Temperature-Fahrenheit	250
Maximum Working Pressure-PSI	15
Outlet Connection Size	Does Not Apply To Product
Outlet Connection Type	Does Not Apply To Product
Pressure Steam Discharge Capacity	Does Not Apply to Product
Protection Type	Pressure
Shank Length	Does Not Apply To Product
Thermostat Probe Length	Does Not Apply To Product

• Specification Sheet - LFN36
• Specification Sheet - LFN36-M1 (French)
• Specification Sheet - LFN36-M1 (Spanish)

UPC - 098268450408
