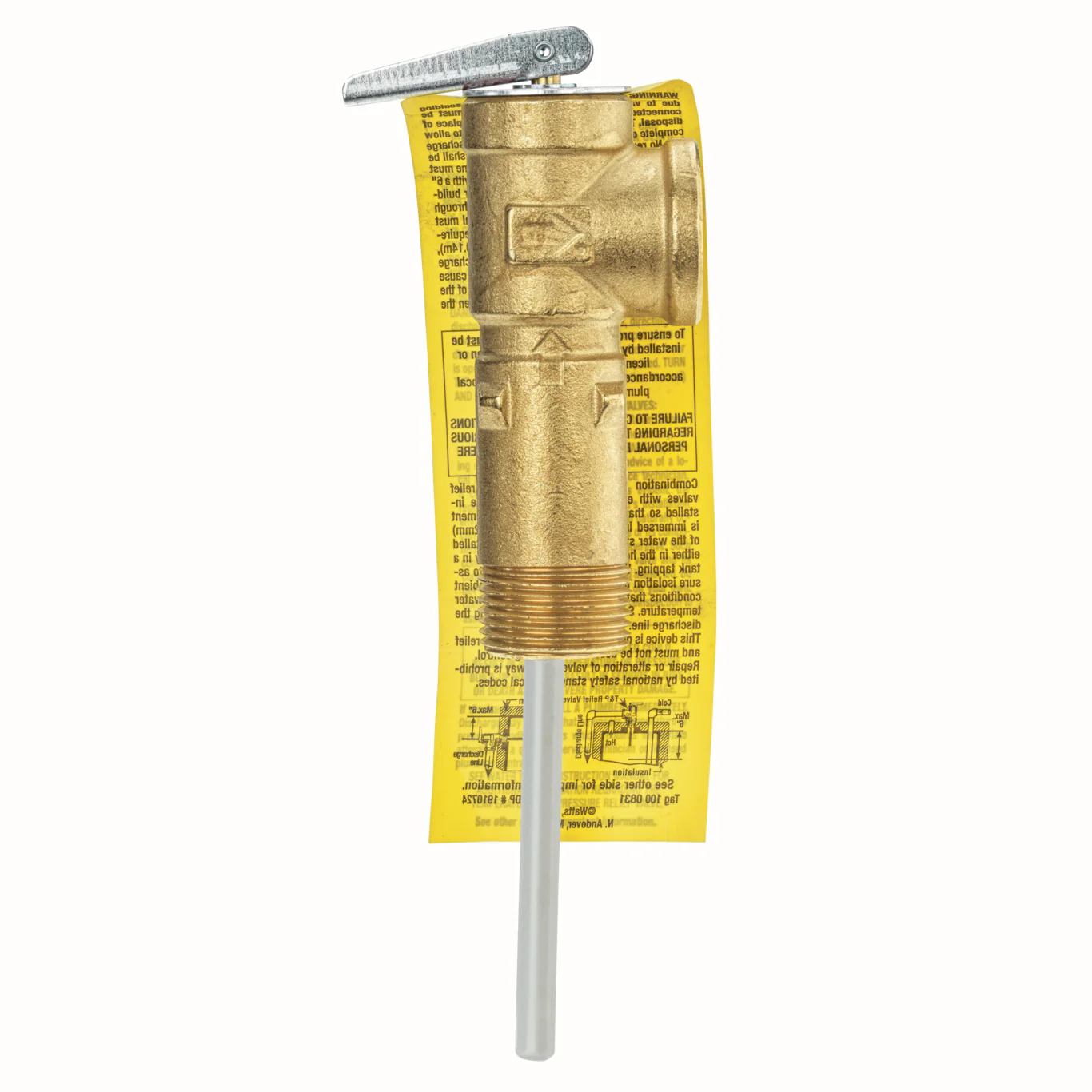

This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with extended shank to accommodated up to 1 3/4 IN of insulation, NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).

Features

• Lead free copper alloy body construction
• Extended shank for thick tank insulation up to 1 3/4 inches
• 3/4 IN male NPT inlet with pre-applied thread sealant
• ASME rated and CSA listed
• Pressure relief range is 75 to 150 psi
• ASME rated, CSA Listed
• Extension thermostat with thermo-bonded coating
• Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
• ANSI Z21.22 certified

Specifications
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	YES
EAN	098268499445
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0068720
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	LFSL100XL
Shank Length	1 1/4 IN
Temperature Relief-Fahrenheit	210
Thermostat Probe Length	3 1/2 IN

• Specification Sheet - LFSL100XL
• Specification Sheet - LFSL100XL (French)

UPC - 098268499445
