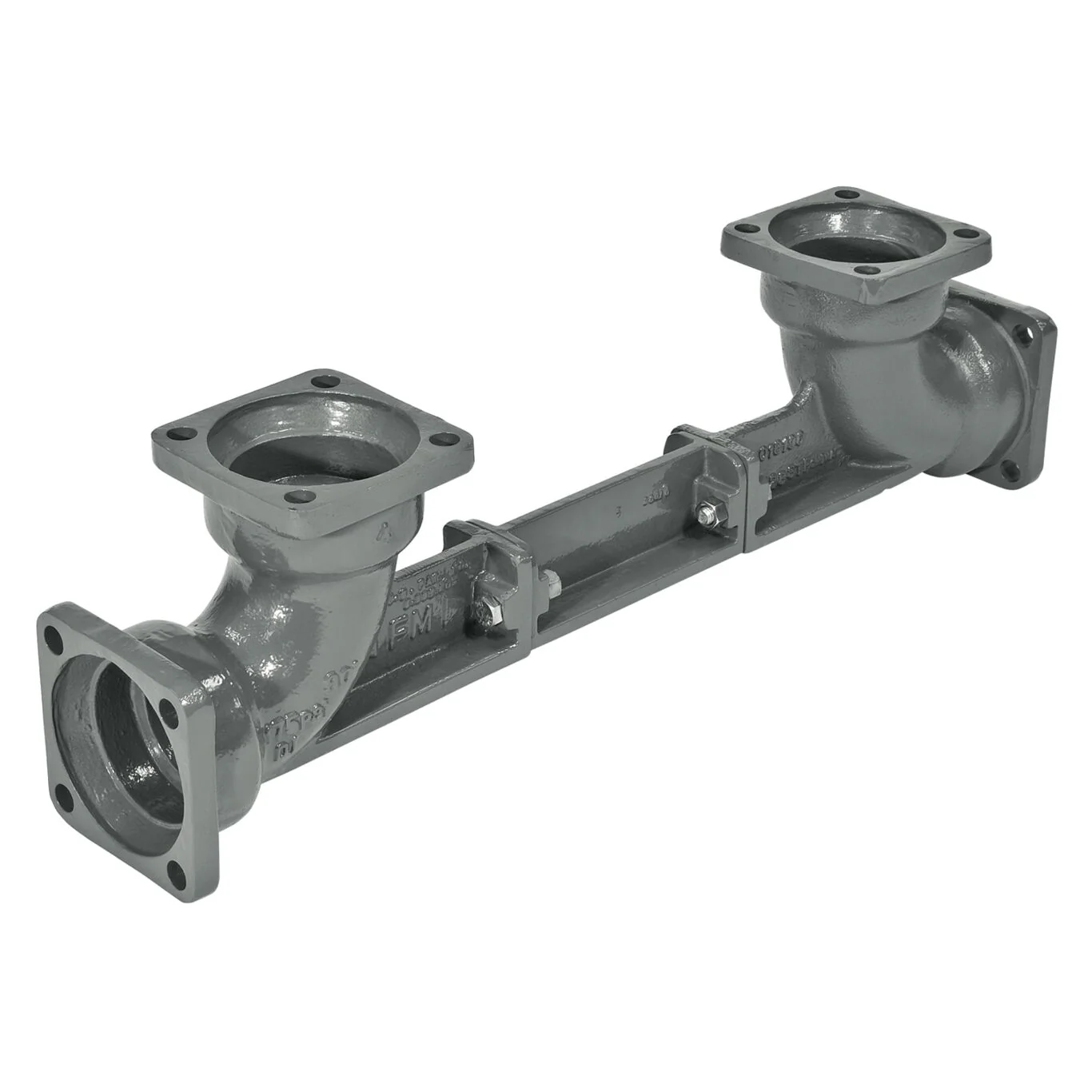

This 10 inch ductile iron valve setter with mechanical joint by mechanical joint connections is designed to augment the installation of the N-shape backflow preventer assemblies. This valve setter is constructed of fusion epoxy coated ductile iron and has an integral ductile iron support between elbows transfers thrust downstream, thus eliminating thrust block requirements between elbows. Mechanical joint restraint devices may be used at the pipe connections, depending on local conditions. Maximum working pressure is 175 psi (12.1 bar).

Features

• Flanges have ANSI B16.1 Class 125 (Standard) ANSI AWWA C153 A21.53-100
• Maximum working pressure is 175 psi (12.1 bar)
• Eliminates the need for thrust blocks or other restraints at the point of installation
• Corrosion resistant fusion epoxy coated

Specifications
Body Coating Type	Fusion Epoxy Coated
Body Material	Ductile Iron
Brand	Watts
Center Joint Bolt Material	Stainless Steel
Center Joint Nut Material	Stainless Steel
Diameter	10 IN
EAN	098268381375
Inlet Connection Size	10 IN
Inlet Connection Size-Metric	250 MM
Inlet Connection Type	Flanged Joint
Lead Free	YES
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Outlet Connection Size	10 IN
Outlet Connection Type	Mechanical Joint
Part Number	0107224
Series	WVS
Temperature Range	32 to 140 degree F,0 to 60 degree C

• Specification Sheet - WVS

UPC - 098268381375
